PharmaDoer PVDF Series polyvinylidene fluoride (PVDF) pleated filter cartridges provide highly efficient submicronic retention of particulates and can deliver fully retentive sterilizing performance for microbial bio-burden in the preparation of pharmaceutical and biotechnology fluids. The PVDF membrane excels in its very low protein binding. The hydrophilic membrane allows for fast and easy wetting in aqueous fluids. Cartridges receive a thorough ultrapure water rinse to assure product cleanliness. Cartridges are 100% integrity tested by forward flow diffusion to assure optimized retention performance.

Features

• PVDF membrane with rugged polypropylene hardware
• Validation Guide is available for the 0.2um fully retentive grade
• Excellent fluid compatibility
• UPW rinse assures low extractables
• Ultra-low protein binding

Applications

• Protein purification
• Cell culture clarification
• Blood processing
• Ophthalmic solutions

Product Quality

• Individual elements are identified by serial number.
• Produced in a Class 10,000 clean-room environment for product purity & cleanliness.
• Manufactured within an ISO 9001:2015 certified quality management system.
• Each element is integrity tested by diffusion flow.
• A Certificate of Quality document is provided with each production lot.

Microbial Retention Performance

Materials of Construction

Dimensions

Operating Conditions

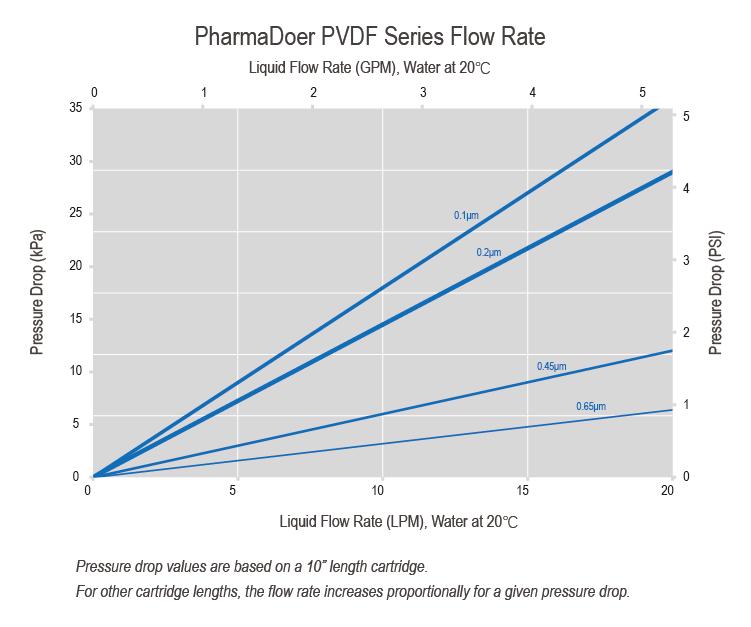

Clean Pressure Drop

Effluent Quality

• Non-fiber releasing
• 0.2μm grade delivers sterile effluent in accordance with the requirements of ASTM838-20.
• High LRV or full sterility performance for effluent with increased microbial stability to prevent spoilage.
• Non-pyrogenic per USP Bacterial Endotoxin Requirements (>0.25EU/mL)

Integrity Test Parameters

Removal Rating	Bubble Point （BP）	Diffusion Flow (DF)
0.1µm	4800mbar	25ml/min@3900mbar
0.22µm	3200mbar	25ml/min@2760mbar
0.45µm	2100mbar	25ml/min@1700mbar
0.65µm	970mbar	15ml/min@620mbar

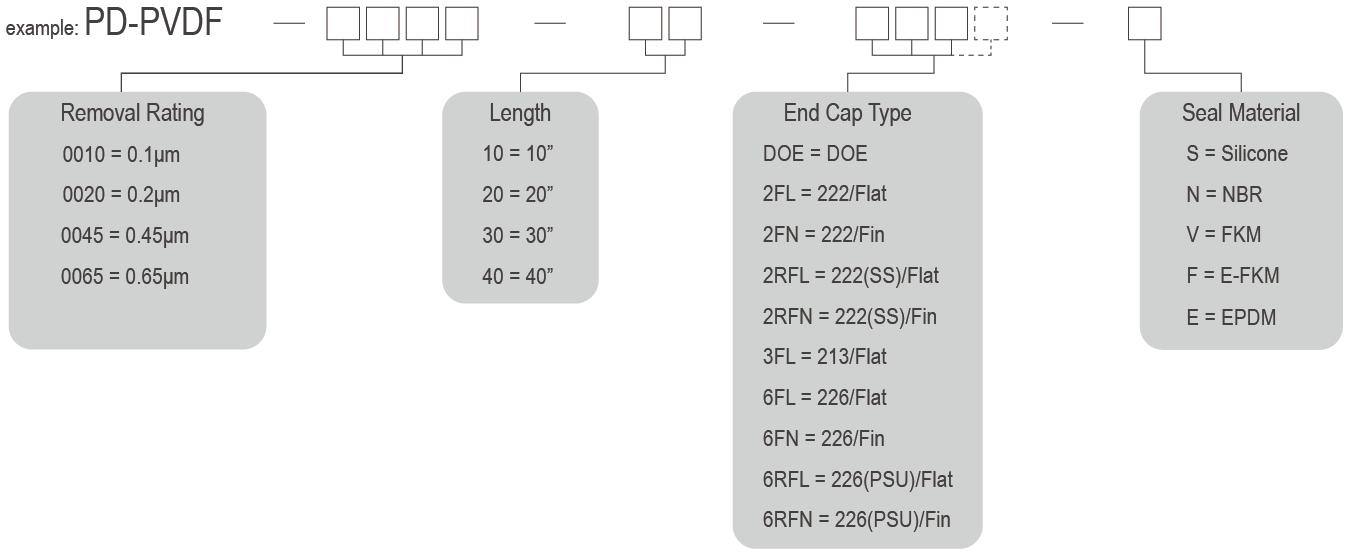

Ordering Information
