Manufactured of AISI304 or AISI316 stainless steel. Accept standard 2.25" to 3" OD filter cartridges. These rugged & durable housings can provide decades of service. Avoids the catastrophic failures seen with plastic housings.
Suitable for use with potable water and food products. The ¼”NPT bottom port allows easy draining.
An internal spring-loaded seal plate allows the proper sealing of cartridges with varying lengths. Removes the worry of questionable sealing of fixed seal plate designs.
The center rod & top nut closure mechanism has been a standard construction favored for many decades for its strength and economy. Assemble and disassemble using a common wrench. "T-Handle" option allows tool-free
assembly
EPDM seals are provided as standard. Optional seal materials are available.

Features

• Stainless steel construction resists corrosion
• Rugged and capable of decades of use
• Flat bottom allows the sump to stand upright during cartridge changes
• Provides fine economy in a metal housing
• DOE cartridge connections
• Mounting bracket included
• Component materials comply with US FDA and EU regulations for safe use with potable water

Applications

• Industrial process fluids
• Restaurants & institutions
• Under-sink or whole-house water filtration

Product Quality

• Manufactured within an ISO 9001:2015 certified quality management system.
• Halal certified.
• Certification of the Quality document can be provided upon request.

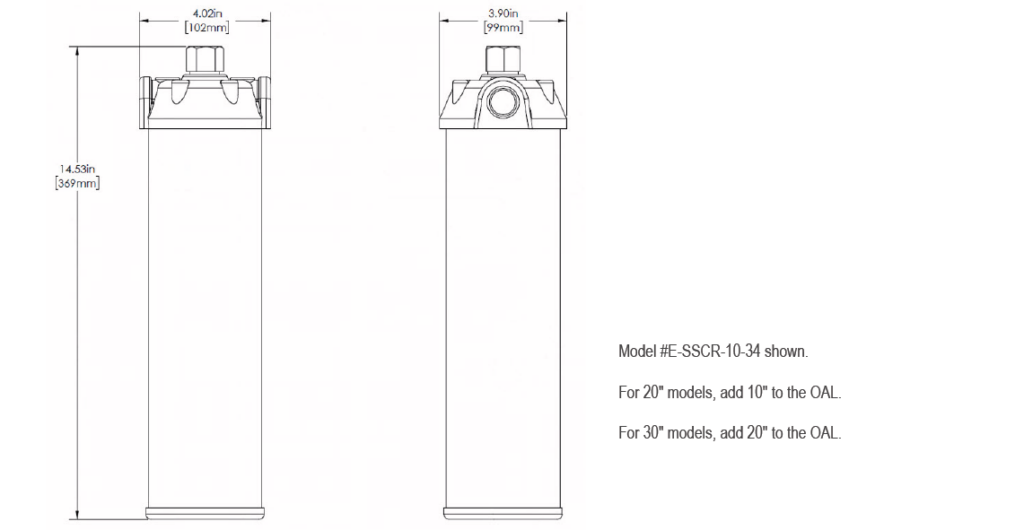

Dimensions

Materials of Construction

Operating Conditions

Note: Other port sizes and lengths may be available. Please inquire.
