E-SSCE Series Stainless Steel Screen Filter Cartridges
Endoer's E-SSCE-series filter cartridges are constructed of 100% stainless steel in an economical cylindrical geometry. It's an ideal choice for hot or cold water, or high temperature applications. These designs can handle repe...
Endoer's E-SSCE-series filter cartridges are constructed of 100% stainless steel in an economical cylindrical geometry. It's an ideal choice for hot or cold water, or high temperature applications. These designs can handle repeated cycles of physical cleaning, chemical cleaning, and back-washing for years of reliable use.
Features
100% stainless steel construction.
High tolerance to heat.
Retention ratings of 10, 25, 50, and 100 microns.
Silicone gaskets, suitable for food contact uses.
Favorable economy versus pleated constructions.
Applications
Well water
Hot water systems
High temperature industrial fluids
Steam
Foods & beverages
Product Quality
Manufactured within an ISO 9001:2015 certified quality management system.
Certificate of Quality document is available with each production lot.
Materials of Construction
Basket shell
AISI304 Stainless Steel
Seal Options
Silicone
Dimensions
Diameter
64mm (2.5") or 109mm (4.3")
Lengths
10” or 20”
Operating Conditions
Operating Temperature
121°C (250°F) max.
Operating dP (max.)
6 bar (90 psi) @ 100°C (212°F)
Differential Pressure
4 bar (60 psi) @ 100°C (212°F)

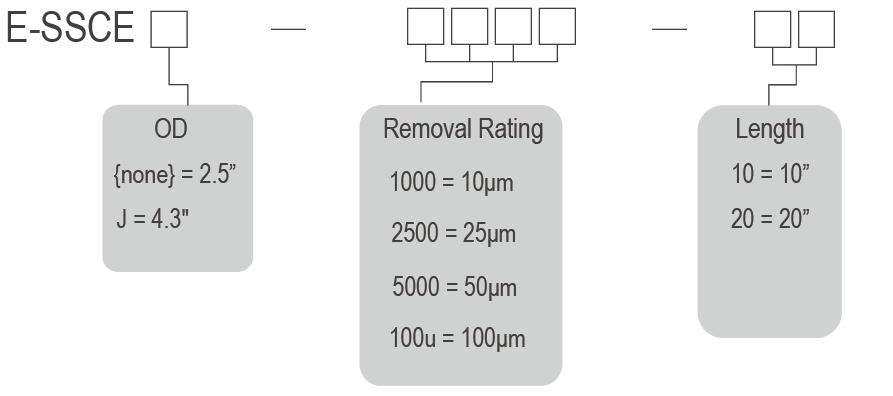

Ordering Information
All models constructed of AISI304 stainless steel and silicone gaskets.
