Manufactured of AISI304 or AISI316 stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ultimate in cleanability. Accept standard 2.5” to 3”OD filter cartridges. These are the standard choice in laboratory or low-flow rate usage in the pharmaceutical, bio-technology, and food/beverage industries.

Features

• Ultra-high degree of polishing: Internal: Ra ≤ 0.3μm (12μin) , External: Ra ≤ 0.4μm (16μin).
• Highest degree of cleanability.
• Strengthened closure allows 150 psi (10 bar) operation.
• Heavy-duty legs provide stability and ruggedness.
• Suitable for Clean-in-Place and Steam-in-Place processes.
• Standard models include 1/2"TC drain side ports.

Applications

• Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products
• Laboratory water, ultra-high purity water
• Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups

Product Quality

• Manufactured within an ISO 9001:2015 certified quality management system.
• Halal certified.
• Certification of Quality document can be provided upon request.

Materials of Construction

Surface Finish

Operating Conditions

Clean Pressure Drop

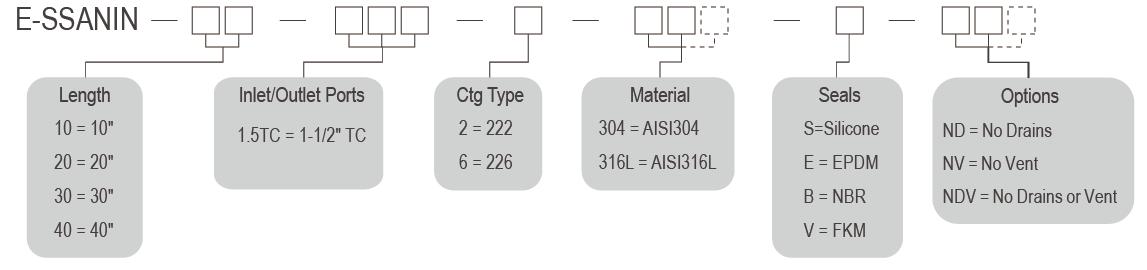

Ordering Information

Note:Other port sizes and lengths may be available.Please inquire.
