E-SHF Series Veolia Z-Plex Compatible “High-Flow” Type Pleated Depth Media Filter Cartridges
Endoer™ E-SHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications.Available in both polypropylene(PP) and micro-glass media and ...
Endoer™ E-SHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene(PP) and micro-glass media and in a wide range of absolute and nominal ratings. Compatible fit with Veolia Z-Plex type cartridges. Compared with the Z-Plex type construction, the pleated E-SHF offers greater flow permeability with higher contaminant capacity. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Features
- Durable and inert polypropylene media components
- Micro-glass media option offers even higher permeability and more efficient retention
- Thermally-bonded construction for cartridge integrity
Applications
- RO prefiltration
- Process water, wastewater
- Power plant water, desalination
- Fine chemicals
- Beer, wine, distilled spirits, bottled water
- Food products ingredients
Product Quality
- Produced in a clean-room environment for product purity cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
Materials of Construction
| Media | Polypropylene or Micro-Glass |
| Support Layers | Polypropylene |
| Cage; End Caps | Polypropylene |
| Seal Options | Silicone, NBR, EPDM, FKM |
Dimensions
| Body Diameter | 168mm(6.6") |
| Lengths | 40" |
Operating Conditions
| Operating Temperature | 80°C(176°F)max |
| Operating dP(max.) | 4bar (58psi)@20℃(68°F) 2.4bar (35psi)@80°C(176°F) |
| Change-Out dP | 2.6 bar (38 psi)@20°C(68°F) |

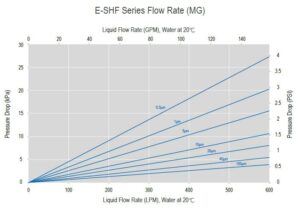

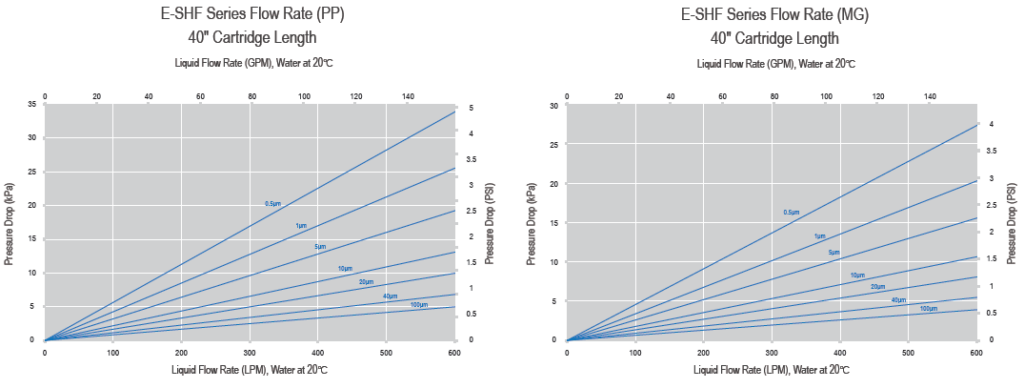

Clean Pressure Drop
Pressure drop values are based on absolute-rated cartridges
Nominally-rated models have -20% lower dP versus absolute-rated models.

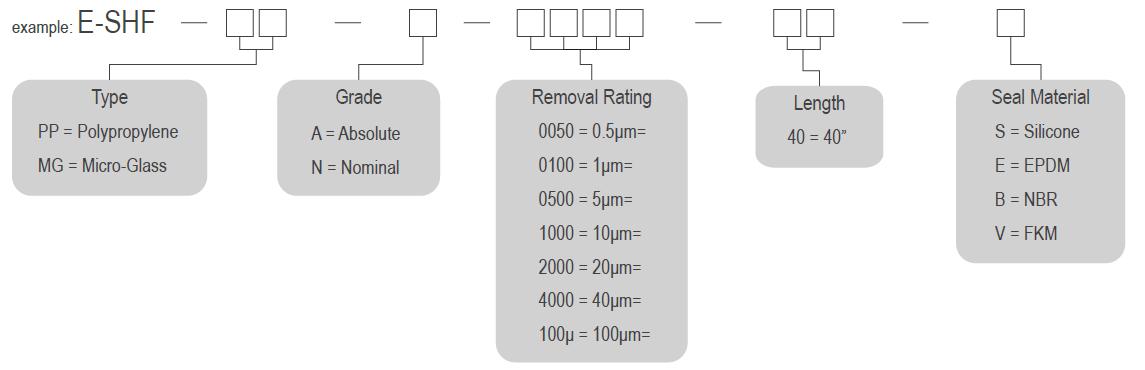

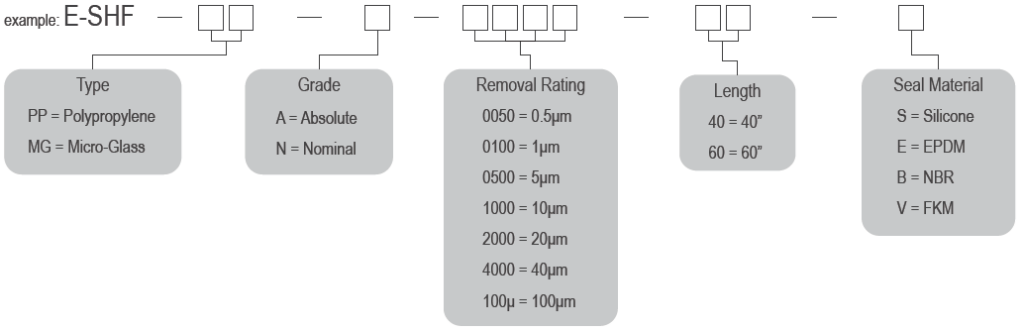

Ordering Information
