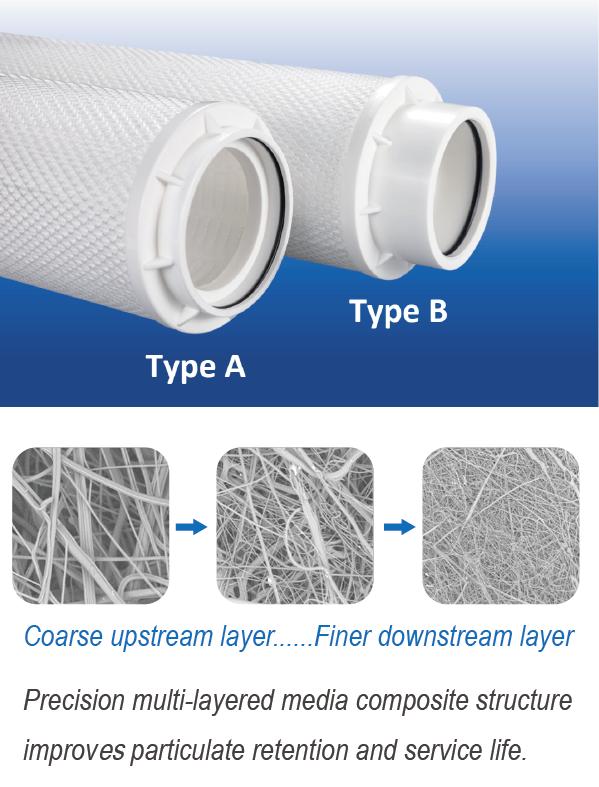

E-PMHF Series MegaFlow Compatible “High-Flow” Type Pleated Depth Media Filter Cartridges
Endoer™ E-PMHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene (PP) and micro-glass media a...
Endoer™ E-PMHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene (PP) and micro-glass media and in a wide range of absolute and nominal ratings. Compatible fit with Parker MegaFlow type cartridges. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Available in 20" and 40" lengths.
Features
- Durable and inert polypropylene media & components
- Micro-glass media option offers even higher permeability and more efficient retention
- Thermally-bonded construction for cartridge integrity
Applications
- RO prefiltration
- Process water; wastewater
- Power plant water; desalination
- Fine chemicals
- Beer, wine, distilled spirits, bottled water
- Food products & ingredients
Product Quality
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system.
- Halal certified.
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
Materials of Construction
| Media | Polypropylene or Micro-Glass |
| Support Layers | Polypropylene |
| Cage; End Caps | Polypropylene |
| Seal Options | Silicone, NBR, EPDM, FKM |

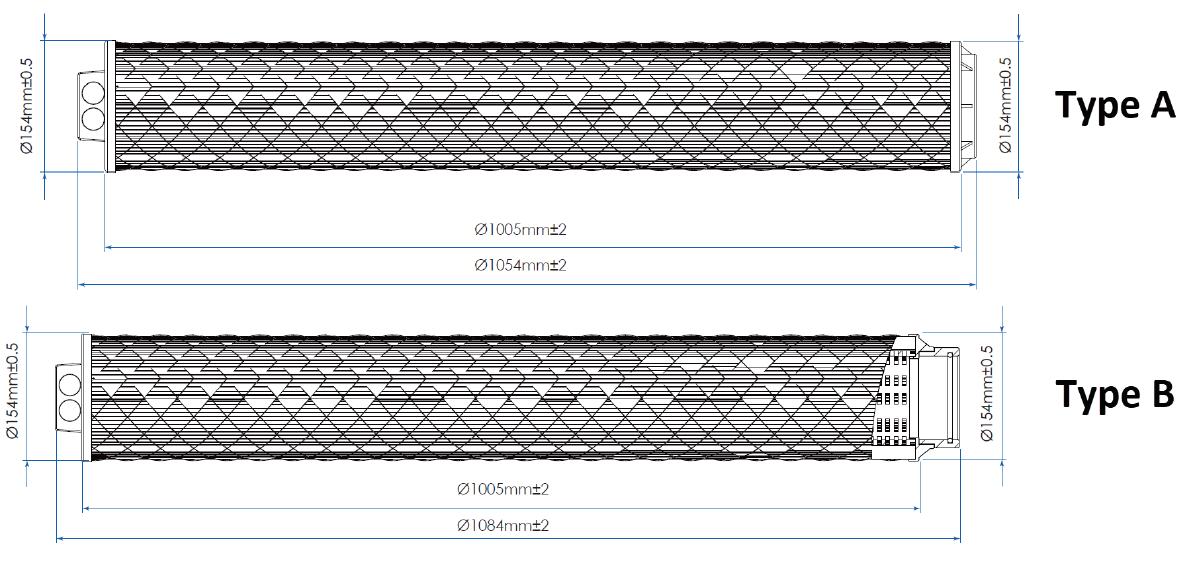

Dimensions
| Body Diameter | 168mm(6.6") |
| Lengths | 40" |
Operating Conditions
| Operating Temperature | 80°C(176°F)max |
| Operating dP(max.) | 4bar (58psi)@20℃(68°F) 2.4bar (35psi)@80°C(176°F) |
| Change-Out dP | 2.6 bar (38 psi)@20°C(68°F) |

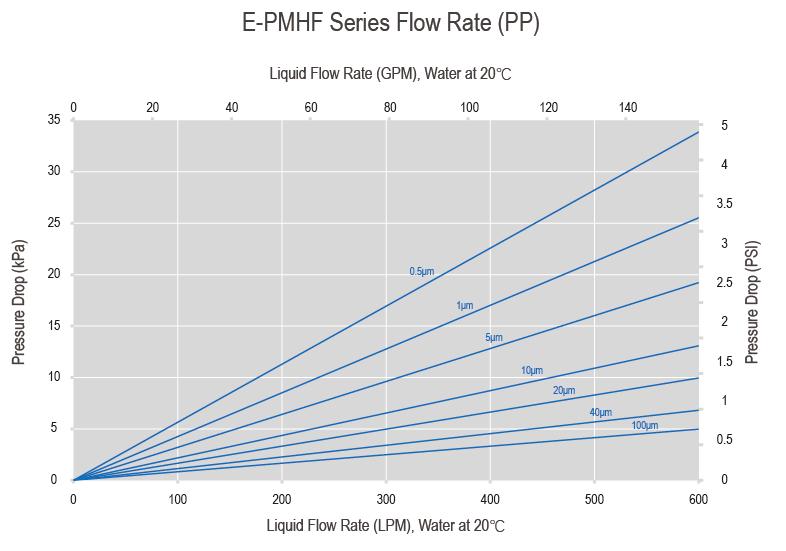

Clean Pressure Drop

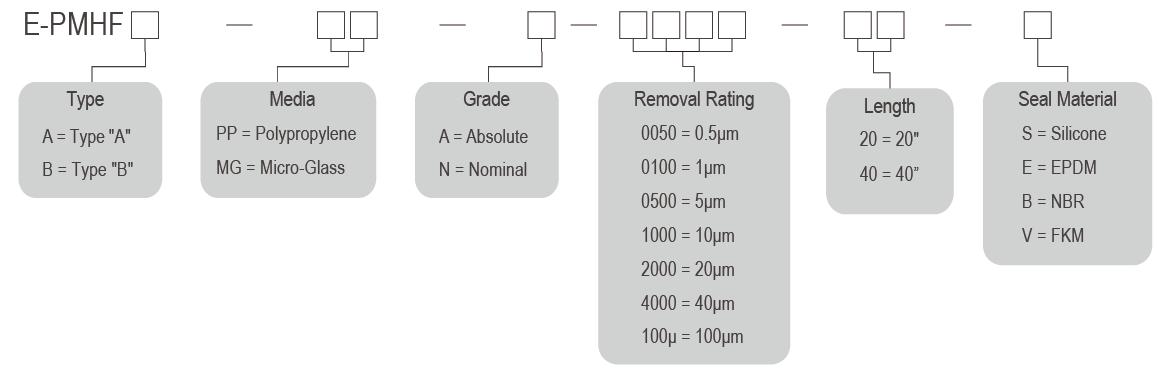

Ordering Information
