E-PHF Series Aqualine “High-Flow” Type Pleated Depth Media Filter Cartridges
Endoer™ E-PHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene (PP) and micro-glass media and in a wide range of absolute and nominal ratings. Compatible fit with Pentair Aqualine High-Flow series. They offer fine flow permeability and a high contaminant capacity with superior chemical resistance. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Features
- Durable and inert polypropylene media & components
- Micro-glass media option offers higher permeability and more efficient retention
- Compatible fit with Pentair Aqualine High-Flow series filters
- Thermally-bonded construction for cartridge integrity
Applications
- RO prefiltration
- Process water; wastewater
- Power plant water; desalination
- Fine chemicals
- Beer, wine, distilled spirits, bottled water
- Food products & ingredients
Product Quality
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.

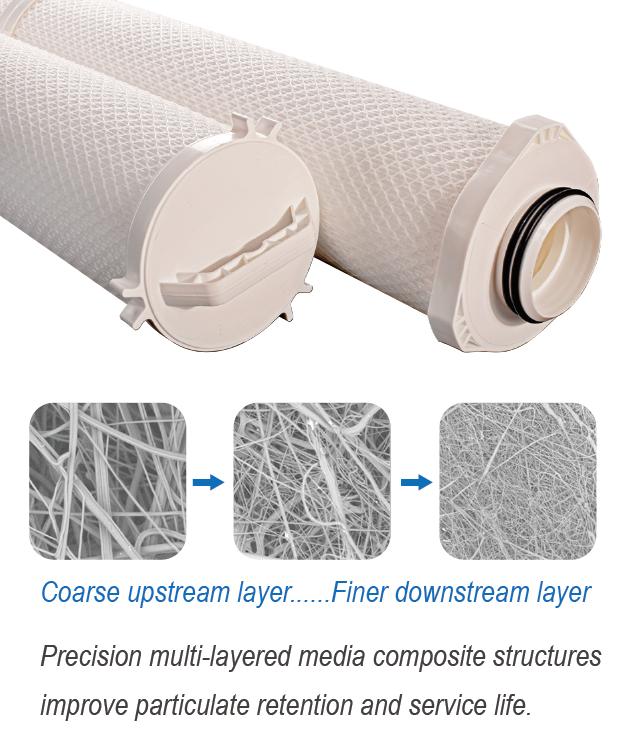

Materials of Construction
Media: | Polypropylene or Micro-Glass |
Support Layers: | Polypropylene |
Cage; End Caps: | Polyurethane |
Seal Options: | Silicone, NBR, EPDM, FKM |
Dimensions
Diameter: | 170mm (6.7") |
Lengths: | 40”, 60” |
Operating Conditions
Operating Temperature: | 80°C (176°F) max. |
Operating dP (max.): | 4 bar (58 psi) @ 20°C (68°F) 2.4 bar (35 psi) @ 80°C (176°F) |
Change-Out dP: | 2.6 bar (38 psi) @ 20°C (68°F) |

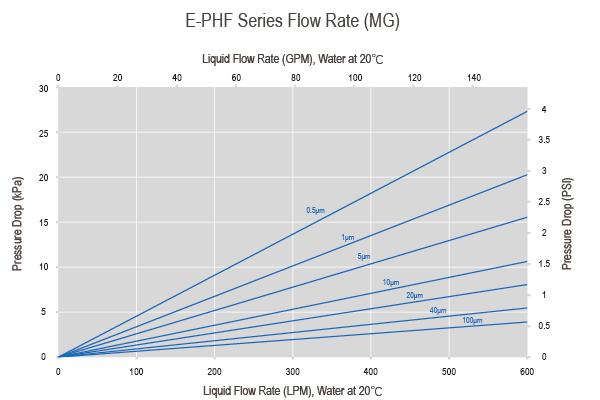

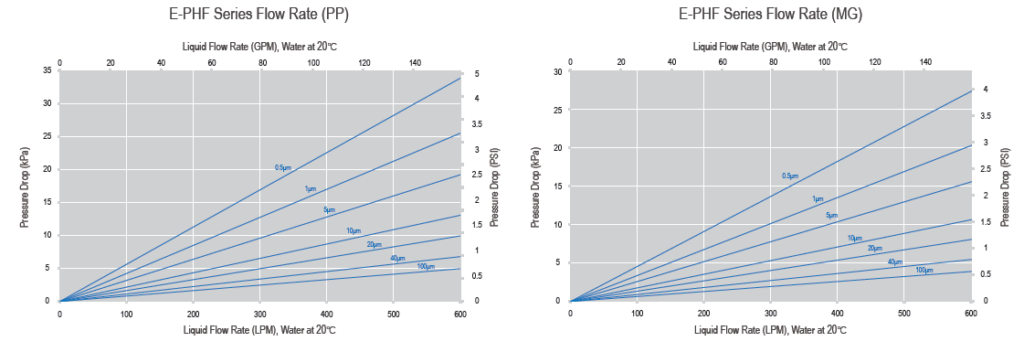

Clean Pressure Drop


Pressure drop values are based on a 40"length cartridge.
For other cartridge lengths,the flow rate increases proportionally for a given pressure drop.
Nominally-rated models have ~20%lower dP versus absolute-rated models.
