E-MHF Series 740 “High-Flow” Type Pleated Depth Media Filter Cartridges
Endoer™ E-MHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene (PP) and micro-glass media and in a wide range of absolute and nominal ratings. Compatible fit with 3M® 740 High-Flow series. They offer fine flow permeability and a high contaminant capacity with superior chemical resistance. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Retention Level Options
Select from four levels of design efficiency to deliver the desired balance between retention, service life, and economy.
- Absolute + / 99.98% for maximized retention
- Absolute / 98%
- Nominal / 80%
- Water Grade / 60% for maximized life and economy
Features
- Durable and inert polypropylene media & components
- Micro-glass media option offers higher permeability and more efficient retention
- Compatible fit with 3M® 740 High-Flow series filters
- Thermally-bonded construction for cartridge integrity
Applications
- RO prefiltration
- Process water; wastewater
- Power plant water; desalination
- Fine chemicals
- Beer, wine, distilled spirits, bottled water
- Food products & ingredients
Product Quality
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity
Materials of Construction
| Media | Polypropylene or Micro-Glass |
| Support Layers | Polypropylene |
| Cage/Core/End Caps | Polypropylene |
| Seal Options | Silicone, NBR, EPDM, FKM |
Dimensions
| Diameter | 165mm (6.5") |

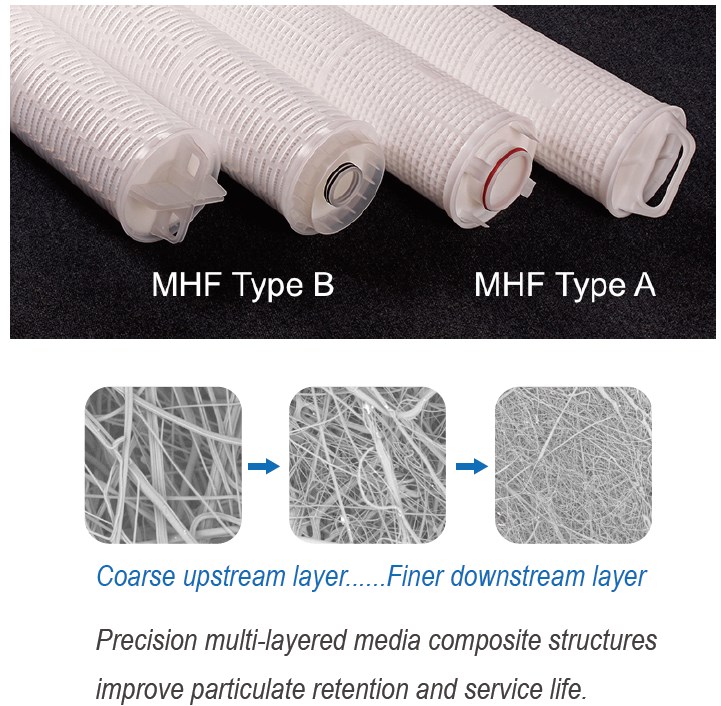

| Lengths | 40"&60"(Type A); 39"(Type B) |
Operating Conditions
| Operating Temperature | 80°C (176°F) max. |
| Operating dP (max.) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| Change-Out dP | 2.4 bar (35 psi) @ 80°C (176°F) |

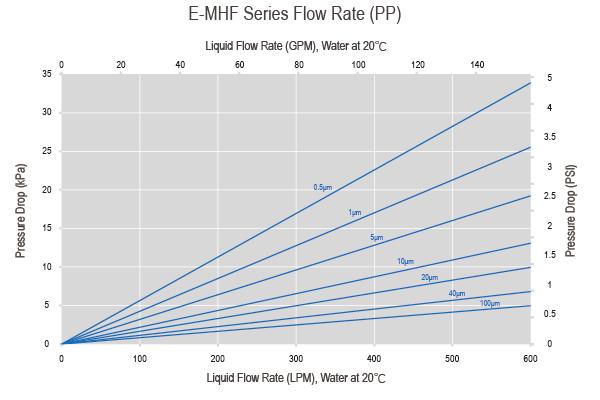

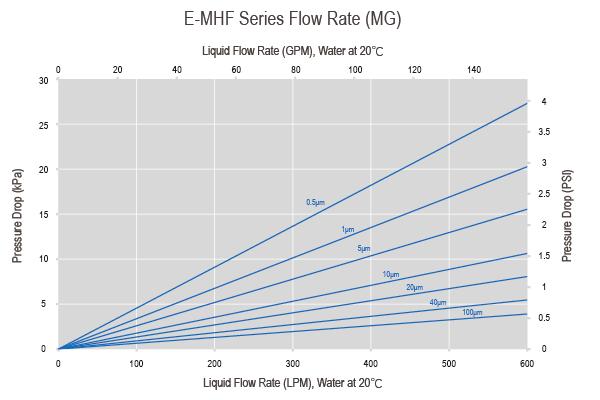

Clean Pressure Drop
Absolute-seres dP values are shown for a 40"cartridge.
Absolute+ rated models have~5-10% higher dP versus absolute-rated models.
Nominal and Water Grade-rated models have ~15-20% lower dP versus absolute-rated models.
Flow rates dP values for other lengths are proportional.

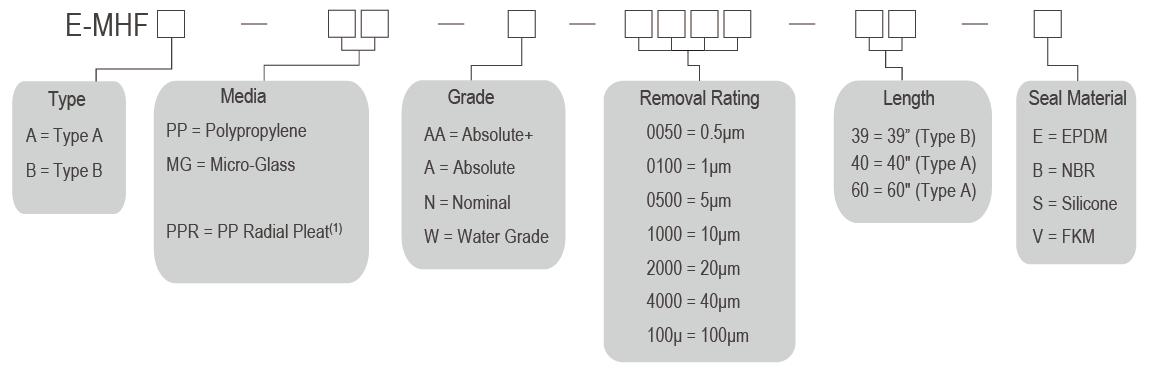

Ordering Information
(1)Available only in Absolute and Nominal ratings and netted outer layer.
