E-MBPP-AP810 series Melt-Blown Polypropylene Microfiber Graded Density Filter Cartridges – Deep Groove
Endoer E-MBPP-AP810 series melt-blown polypropylene (PP) microfiber graded density cartridges provide economical performance for micronic retention of particulate in high-purity fluid filtration applications.
The deep grooved O...
Endoer E-MBPP-AP810 series melt-blown polypropylene (PP) microfiber graded density cartridges provide economical performance for micronic retention of particulate in high-purity fluid filtration applications.
The deep grooved OD greatly expands the external filtering surface. End-capped design provides an extra level of security against flow bypass. Design rated for efficiency of up to 80%.
Polypropylene's inherent inertness provides excellent resistance to chemicals. Precision manufacturing provides consistent product quality and performance.
Features
- Durable and inert polypropylene media & end adaptations

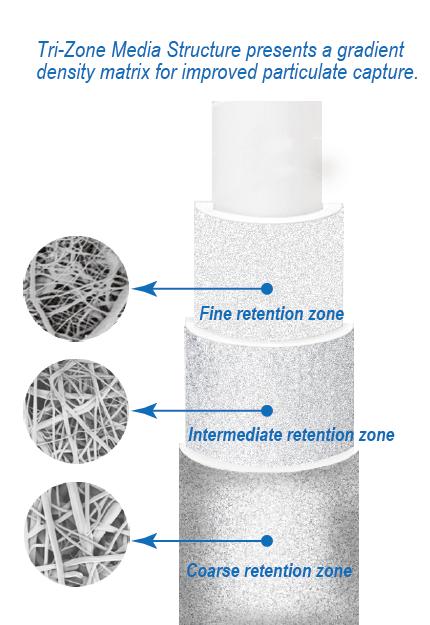

- Controlled porosity delivers fine retention & capacity
- Component materials comply with US FDA and EU regulations for safe use with food products and potable water
Applications
- Food products & ingredients; bottled water
- RO prefiltration
- Process water; wastewater
- Fine chemicals
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system.
- Halal certified.
- Certificate of Quality available upon request for each product lot.
Materials of Construction
| Media | Polypropylene |
| End Caps | Polypropylene |
| Seals Options | EPDM |
Dimensions
| Body Diameter | 115mm (4.5") |
| Lengths | 10”, 20” |
Operating Conditions
| Operating Temperature | 60°C (140°F) max. |
| Operating dP (max.) | 3.5 bar (50 psi) @ 20°C (68°F) 1.2 bar (18 psi) @ 60°C (140°F) |
| Change-Out dP | 2.6 bar (38 psi) @ 20°C (68°F) |

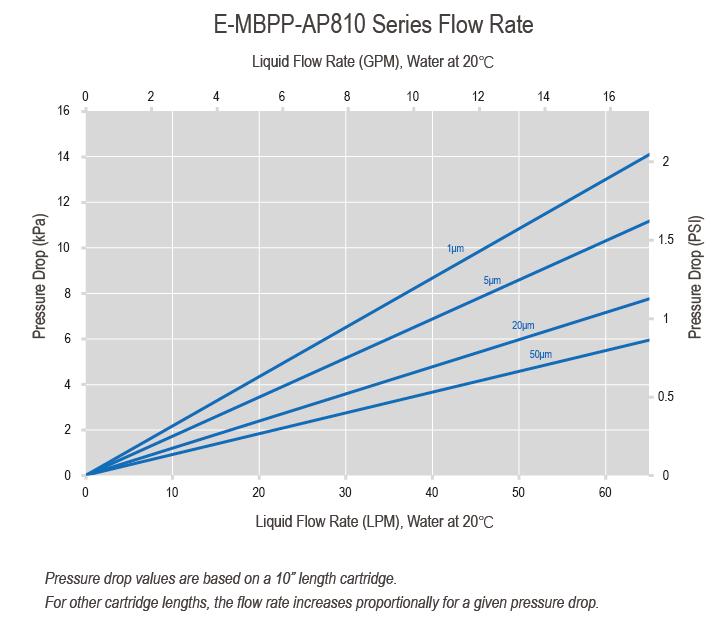

Clean Pressure Drop

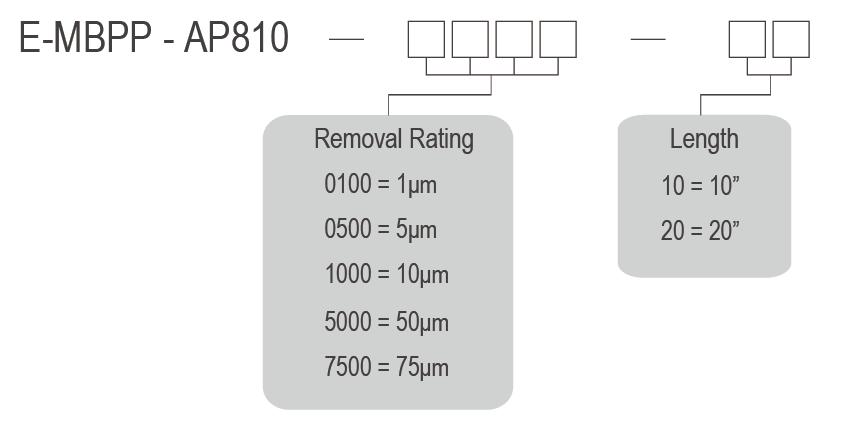

Ordering Information
Note: Additional materials of constuction may be available. Please inquire.
