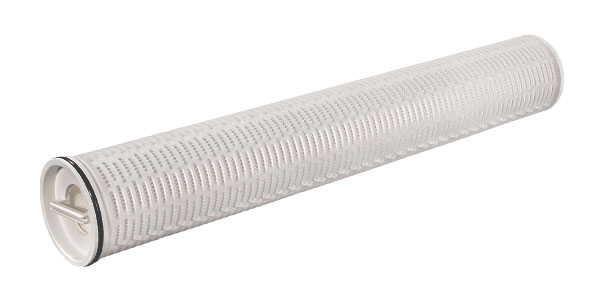

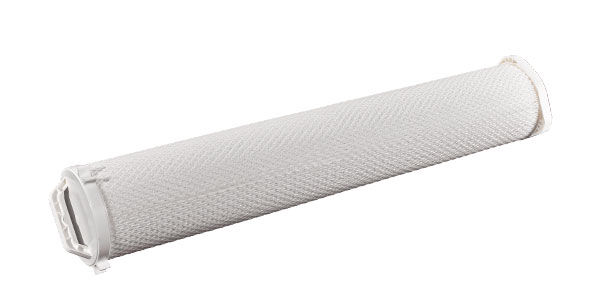

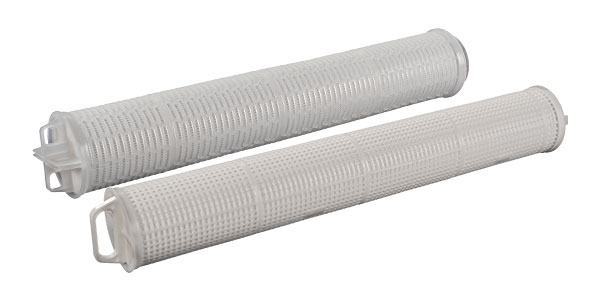

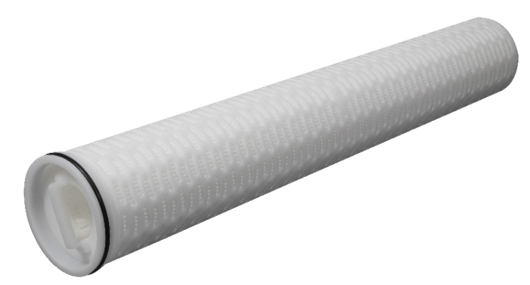

Endoer™ E-HFMB series meltblown depth media cartridges provide efficient micronic retention of particulate in high-purity fluid filtration applications. Manufactured using meltblown polypropylene(PP) microfiber media in a range of nominal ratings. Compatible fit options are available for Pall,3M, and Pentair types of High-Flow cartridges.
They offer fine flow permeability and a high contaminant capacity with the superior chemical resistance of polypropylene. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Features
- Durable and inert polypropylene media components provide superior chemical resistance
- Compatible fit with major types of High-Flow filters
- Thermally-bonded construction uses no adhesives or solvents, and provides excellent cartridge strength and integrity
Applications
- Beer, wine, distilled spirits, bottled water
- Food products ingredients
- RO prefiltration
- Process water: wastewater
- Fine chemicals
Product Quality
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system
- Halal certified.
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
Materials of Construction
| Media: | Polypropylene |
| Cage; End Caps: | Polypropylene |
| Seal Options: | EPDM, NBR, Silicone, FKM |
Dimensions
| Diameter: | 152mm(6.0")to170mm(6.7"0D) |
| Lengths*: | 20”, 39", 40”, 60” |
Operating Conditions
| Operating Temperature: | 80°C (176°F) max. |
| Operating dP(max.): | 4 bar (58 psi) @ 20°C (68°F) 2.4 bar (35 psi) @ 80°C (176°F) |
| Change-Out dP: | 2.6 bar (38 psi) @ 20°C (68°F) |

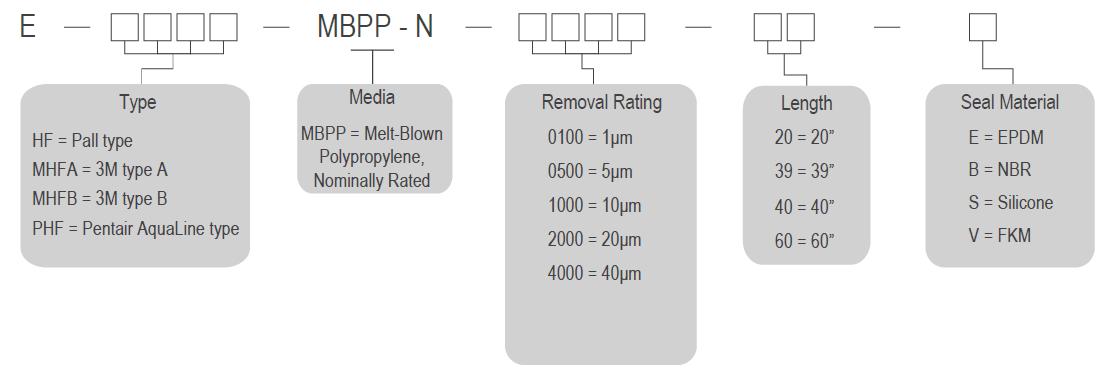

Ordering Information
Note: Additional end cap options may be available, if required. Please inquire.
