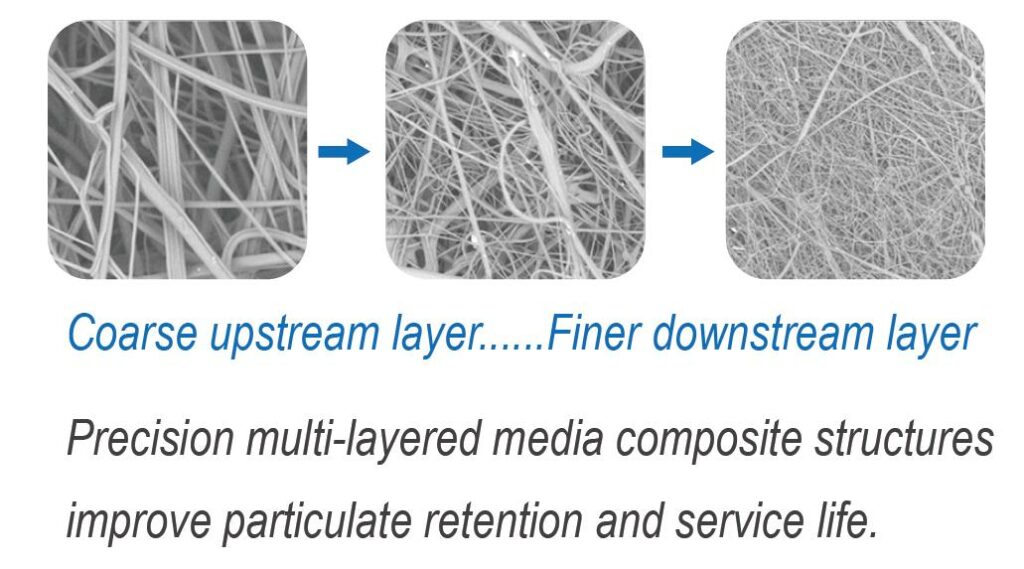

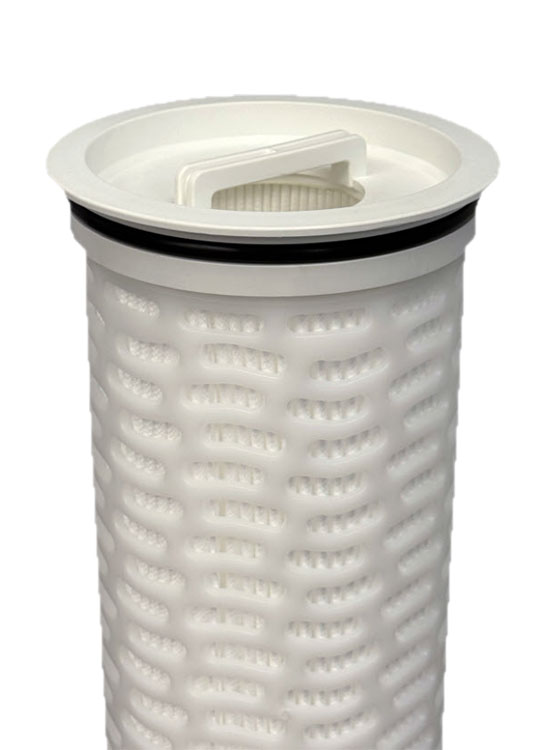

Endoer™ E-FHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene (PP) and micro-glass media and in a wide range of absolute and nominal ratings. Compatible fit with Pall® High-Flow series, but also features a top flange to keep the element in place in housings that lack other means. They offer fine flow permeability and a high contaminant capacity with superior chemical resistance. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.

Retention Level Options

Select from four levels of design efficiency to deliver the desired balance between retention, service life, and economy.

• Absolute + / 99.98% for maximized retention
• Absolute / 95%
• Nominal / 80%
• Water Grade / 60% for maximized life and economy

Features

• Durable and inert polypropylene media & components
• Micro-glass media option offers higher permeability and more efficient retention
• Compatible fit with Pall® High-Flow series filters
• Thermally-bonded construction for cartridge integrity

Applications

• Beer, wine, distilled spirits, bottled water
• Food products & ingredients
• RO prefiltration
• Process water; wastewater
• Fine chemicals

Product Quality

• Produced in a clean-room environment for product purity & cleanliness.
• Manufactured within an ISO 9001:2015 certified quality management system
• Halal certified.
• Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.

Materials of Construction

Dimensions

Operating Conditions

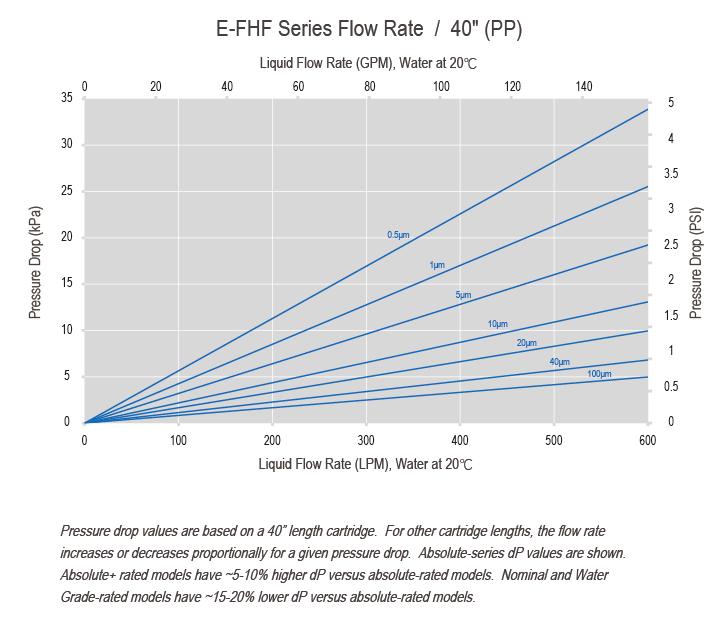

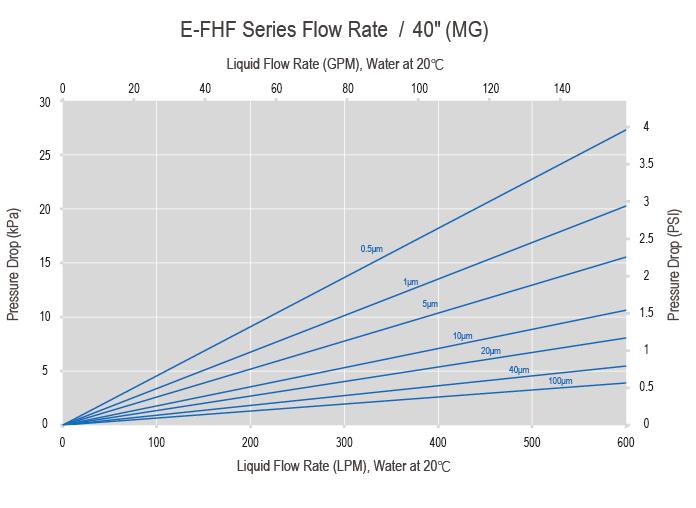

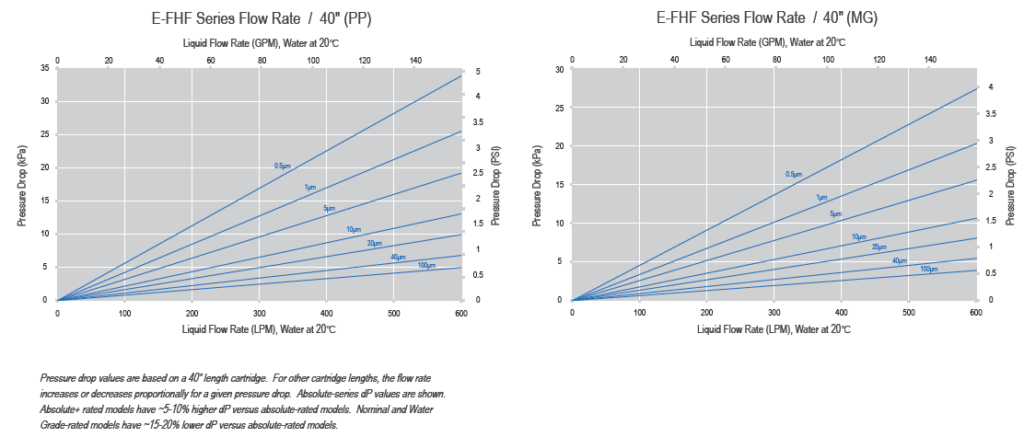

Clean Pressure Drop

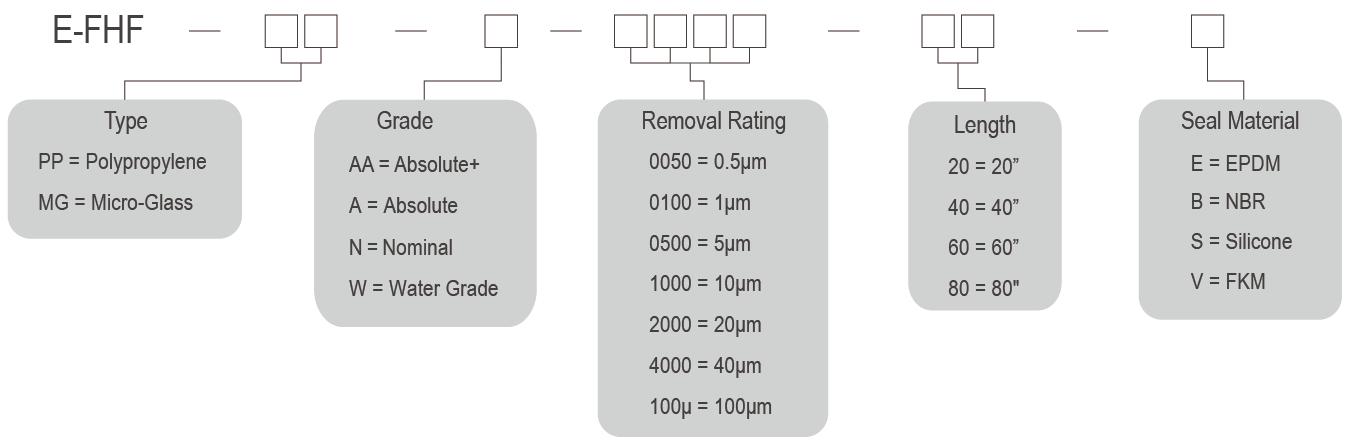

Ordering Information

Note: Additional end cap options may be available, if required. Please inquire.
