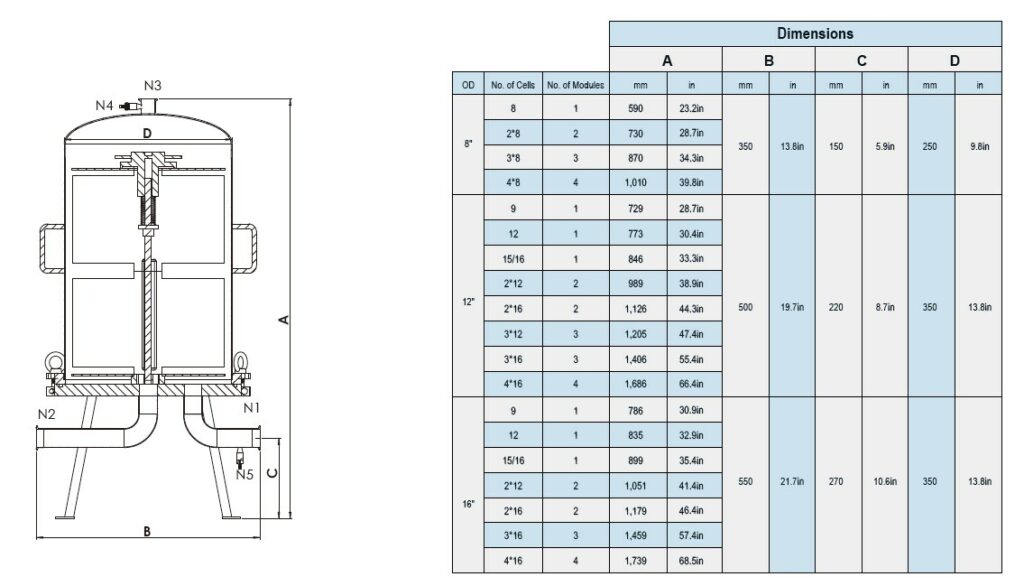

Manufactured of AISI304 or AISI316L stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ultimate in cleanability. Accept standard sizes of depth-stack cartridges of 8", 12", and 16" diameter up to four modules height. These are a preferred choice in the pharmaceutical, bio-technology, and food/beverage industries.
Features
- Ultra-high degree of polishing: Internal: Ra ≤ 0.3μm ， External: Ra ≤ 0.4μm
- Highest degree of cleanability
- In-line porting allows for ease of installation and reduces liquid flow turbulence.
- Heavy-duty legs provide stability and ruggedness
- Spring-loaded sealing closure handle allows for optimized compressive force
- Suitable for Clean-in-Place and Steam-in-Place processes
- Design allows for thorough drainage of process fluid
- Standard 1/2"TC flange side tee ports allow connection of drains, sample ports, or gauges
Applications
- Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products
- Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups
- Chemical processing: removal of sludge and gelatinous substances
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system.
- Halal certified.
- Certification of Quality document can be provided upon request.
Materials of Construction
| Shell Components | AISI304 or AISI316L Stainless Steel |
| Legs; Eye-bolts | AISI304 Stainless Steel |
| Seal Options | SILICONE, EPDM, FKM, NBR |
Surface Finish
| Surface Quality | Internal: Ra ≤ 0.3μm External: Ra ≤ 0.4μm |
| Finish, internal | Mechanical Polishing, Electropolishing |
| Finish, external | Mechanical Polishing |
Operating Conditions
| Operating Temperature: | 150°C (302°F) max. |
| Design Pressure | 10 bar (150 psi) |
Clean Pressure Drop

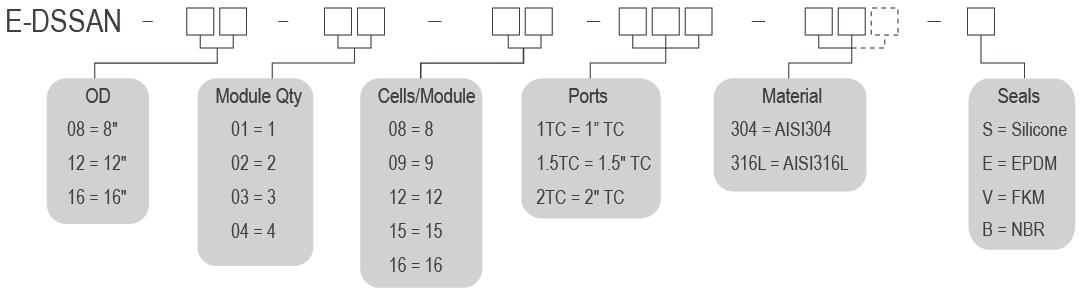

Ordering Information
Note:Other port sizes and types may be available.Please inquire.
