E-CIC Series Carbon Impregnated Cellulose Filter Cartridges
E-CIC cartridges feature powdered activated carbon impregnated into a multi-layered structure of cellulose fibers for a series with excellent cost economy and value. An added post-filtration layer works to prevent carbon fines ...
E-CIC cartridges feature powdered activated carbon impregnated into a multi-layered structure of cellulose fibers for a series with excellent cost economy and value. An added post-filtration layer works to prevent carbon fines release after the initial flush. The 2.6W (66mm) outer diameter allows simple retrofitting to almost every standard cartridge housing used in the finishing industry. Also available in "BB" sizes.
Features
Highly purified activated carbon powder provides superior adsorption kinetics.
66mm outer diameter fits all standard housings used in the plating industry. Also available in "BB" diameter.
Layered media structure provides a low pressure drop.
Highly efficient, providing 90%+ particulate retention at 10 microns.
Applications
Potable water
Plating solutions
Surface finishing treatment baths
Process water
Product Quality
Manufactured within an ISO 9001:2015 certified quality management system.
Halal certified.
Certificate of Quality available upon request for each product lot.
Materials of Construction
Media:
Bonded Powdered Activated Carbon
End Caps:
Polypropylene
Core:
Polypropylene
Post-filter Layer:
Polypropylene,Melt-Blown
Netting:
Polypropylene
Gaskets:
Thermoplastic elastomer
Dimensions
Body Diameter:
66mm(2.6")，or 115mm(4.53")
Lengths:
9.75”, 9.88", 10”, 20”
Operating Conditions
Operating Temperature:
140°F(60°C)max.
Change-Out dP:
2bar(30psij@20℃(68°F)

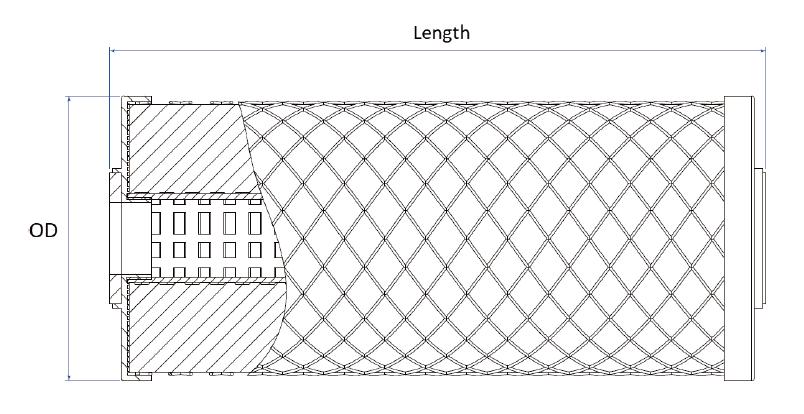

Dimensions (mm)

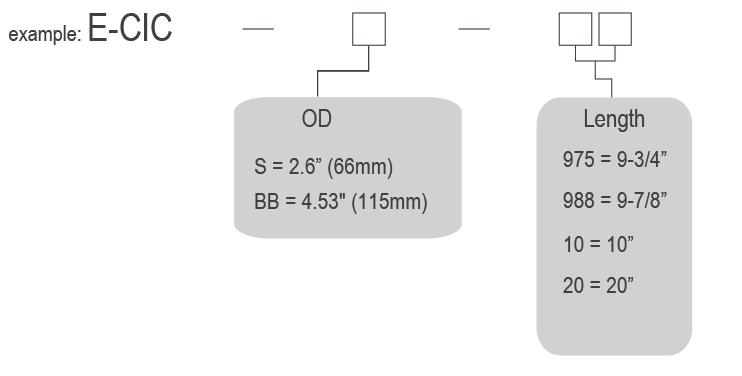

Ordering Information
Note: Additional materials of construction may be available. Please inquire.
