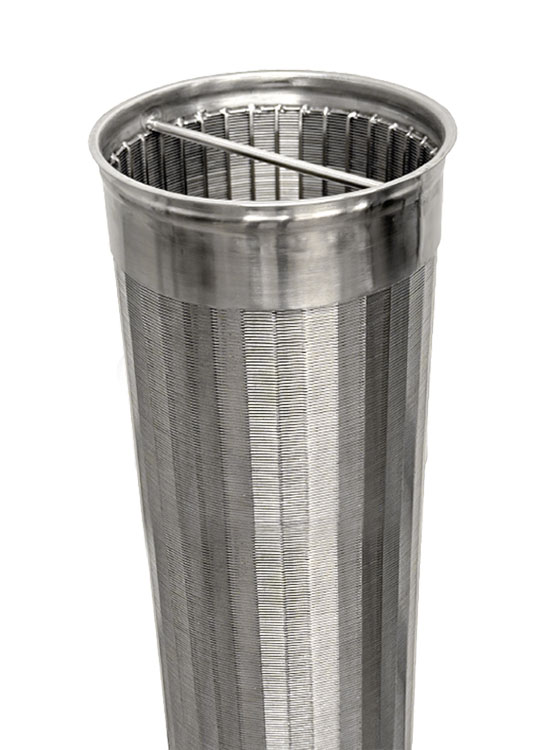

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. Fits in standard Size #1 or Size #2 bag housings. The precision wire placement assures accurate retention performance. The structural design provides significant strength and service life of the basket.
Features
- Rugged structural design provides strength and durability.
- Can be repeatedly cleaned and re-used for many years of service life.
- Tolerates high differential pressure (120 psid max.)
- Center handle allows easy removal and re-installation.
Applications
- Suitable for retaining solids in a broad range of industrial applications, including: process water streams, oil & gas extraction, chemical manufacturing.
- Used in food and beverage production: filtration of juices, syrups, brewed tea & beer, food ingredients, chocolate, and condiments.
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system.
- Halal certified.
- Certification of Quality document can be provided upon request.
Wedge-wire basket construction offers greater strength, durability, and cleanability versus wire mesh types.
Materials of Construction
| Basket shell | AISI304 or AISI316 Stainless Steel |
Operating Conditions
| Operating Temperature | 121°C (250°F) max. |
| Differential Pressure | 8 bard (120 psid) max. |

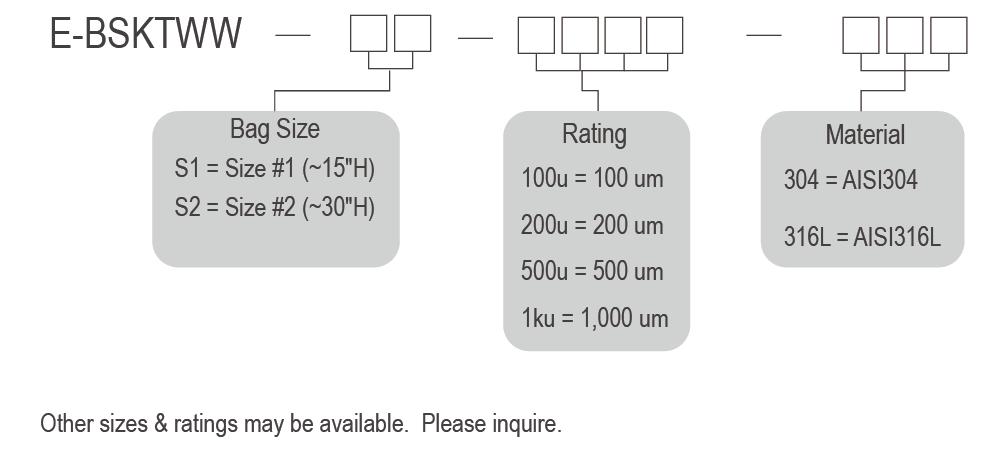

Ordering Information
