E-BHF Series “High-Flow” Type Pleated Depth Media Filter Cartridges for Bag Housings
Endoer E-BHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene (PP) and micro-glass (MG) medi...
Endoer E-BHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. Available in both polypropylene (PP) and micro-glass (MG) media and in a wide range of absolute and nominal ratings. Compatible fit with most common bag filter housings.
They offer fine flow permeability and a high contaminant capacity with excellent chemical resistance. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Retention Level Options
Select from four levels of design efficiency to deliver the desired balance between retention, service life, and economy.
- Absolute +/99.98%for maximized retention
- Absolute/95%
- Nominal/80%
- Water Grade 60%for maximized life and economy
Features
- Inside-to-out flow traps particulate inside the cartridge
- Provides several times the filtration area of bags
- Durable and inert polypropylene media & components
- Micro-glass media option offers higher permeability and more efficient retention
- Compatible fit with most common bag filter housings
- Thermally-bonded construction for cartridge integrity
Applications
- Beer, wine, distilled spirits, bottled water
- Food products & ingredients
- RO prefiltration
- Process water; wastewater
- Fine chemicals
Product Quality
- Produced in a Class 10,000 clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system.
- Halal certified.
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
- Plastic components meet Biological Reactivity Test requirements of USP <88> for Plastics Class VI-121°C.
Materials of Construction
| Media | Polypropylene or Micro-Glass |
| Support Layers | Polypropylene |
| Cage; End Caps | Polypropylene |
| Pull Ring | Stainless steel |
Dimensions
| Body Diameter | 152mm(6.0) |
| Lengths | Size#1(16), Size#2(26) |
Operating Conditions
| Operating Temperature | 80°C(176°Fmax |
| Operating dP(max.) | 3.0 bar (45 psi)@20C (68F) |
| Change-Out dP | 2.0 bar (30 psi)@20C(68F) |

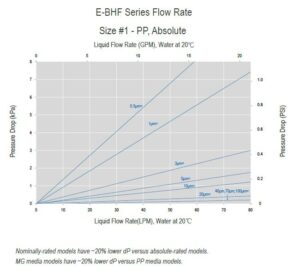

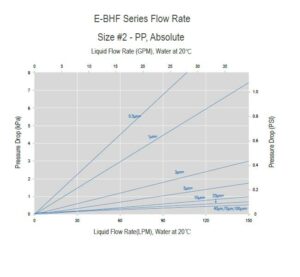

Clean Pressure Drop

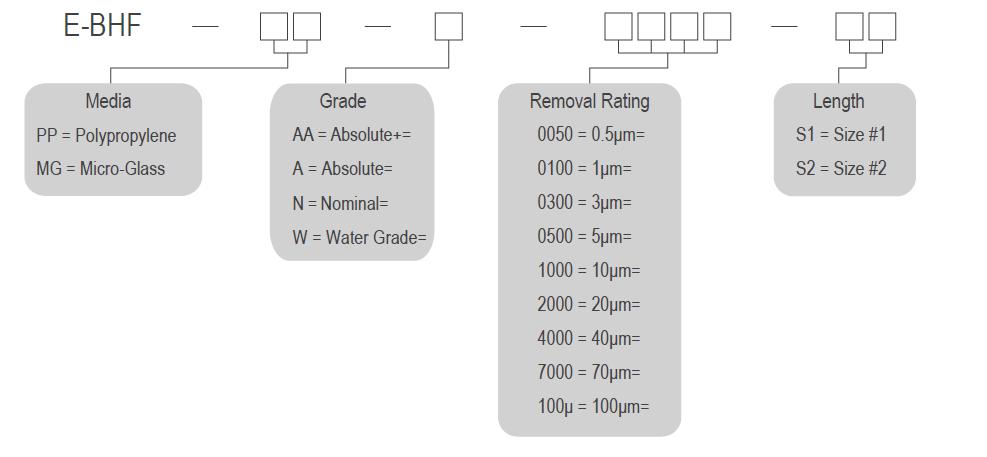

Ordering Information
