Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. The flexible design accommodates DOE, 222/FIN and 222/FLAT style cartridges.

They accept standard 2.5" to 2.75"OD filter cartridges in configurations of up to 12-around and up to 40" cartridge length. This housing series offers a great many options for cartridge quantity, flow rate capacity, and porting size. They're a standard choice to support higher flow rate applications with abundant options for cartridge media types and retention ratings.

Features

• The band clamp closure offers ease of access to cartridges for quick change-out.
• Simplified design provides better economy versus swing bolt styles.
• Welded legs provide a stable and durable installation.
• 150 psi (10 bar) operating pressure rating.
• Can provide flow rates to 400 GPM and beyond.
• Surface passivation reduces the potential for weld line corrosion.
• Includes drain and gauge ports on both the clean and dirty sides.

Applications

• Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals.
• Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water.

Product Quality

• Manufactured within an ISO 9001:2015 certified quality management system.
• Halal certified.
• Certification of Quality document can be provided upon request.

Materials of Construction

Surface Finish

Operating Conditions

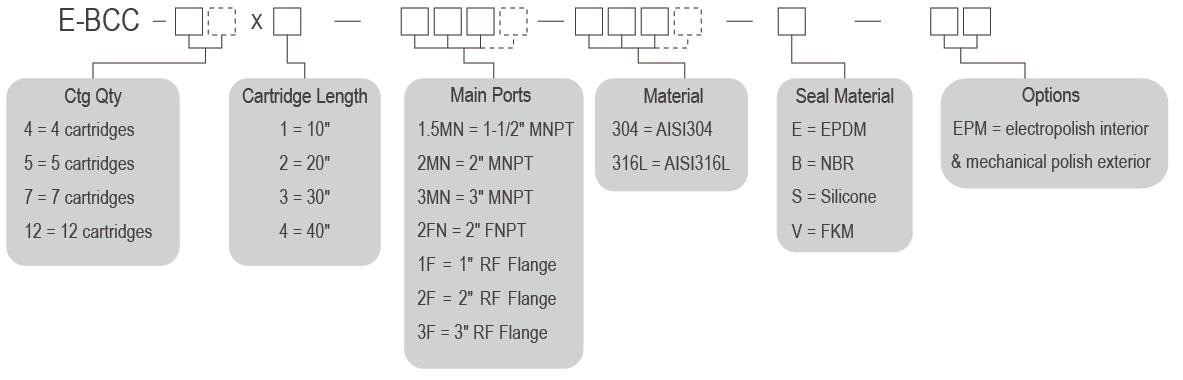

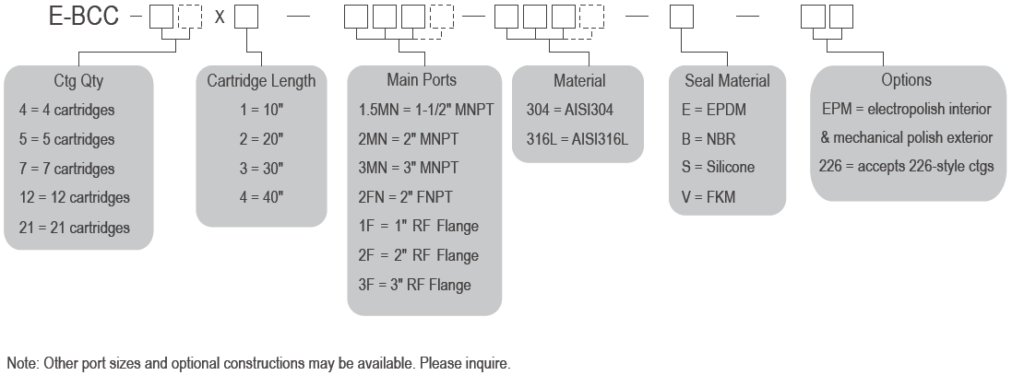

Ordering Information

Note: Other port sizes, pressure ratings, and optional constructions may be available. Please inquire.
